New Patient

Neurally F3 Female

Icona
Icona
Icona

Results Female

X Neurally-F3: --

Y Neurally-F3: --

The error with Beam F3 method would be approximately: --

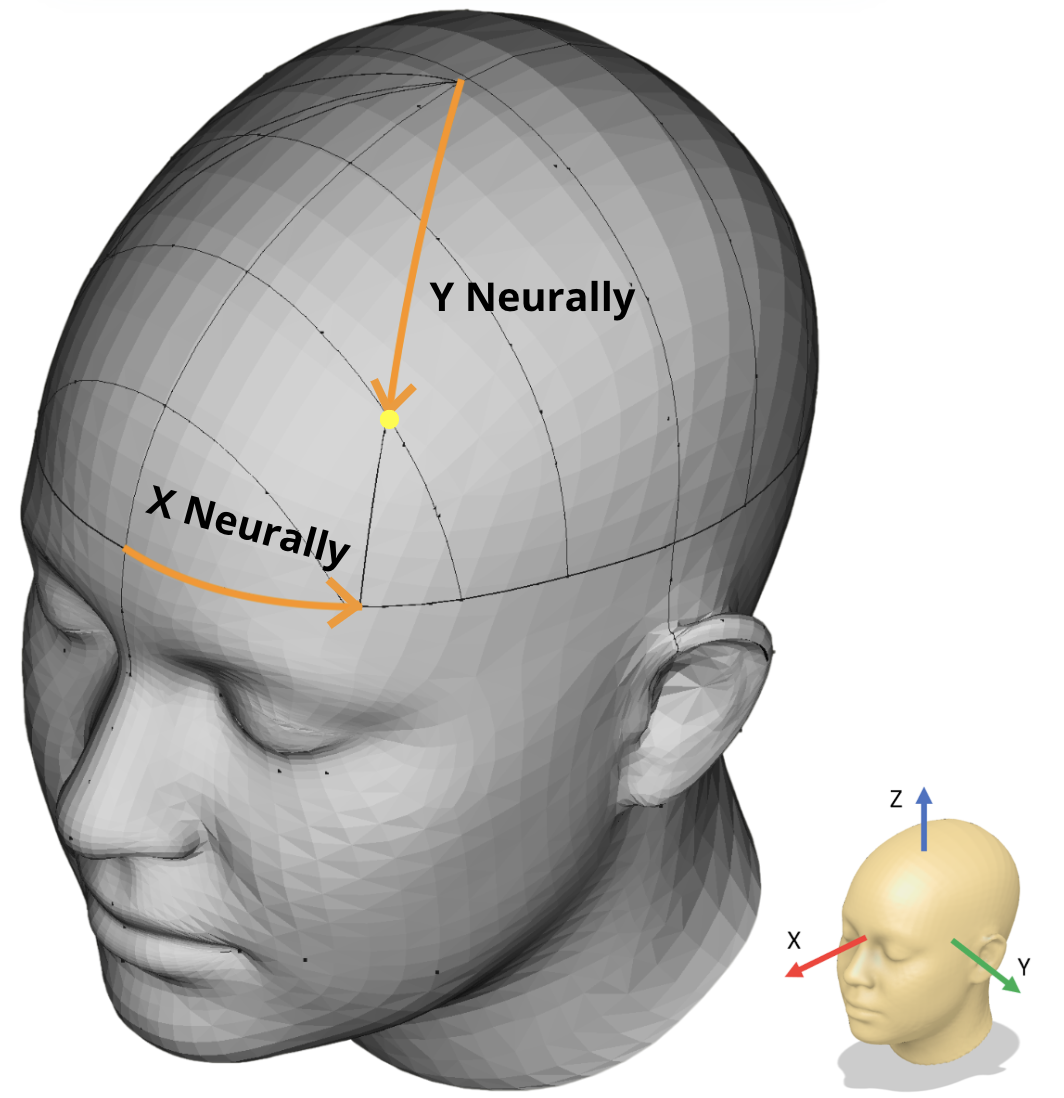

Imatge Equacions Neurally F3

Neurally F3 Male

Icona
Icona
Icona

Results Male

X Neurally-F3: --

Y Neurally-F3: --

The error with Beam F3 method would be approximately: --

Imatge Equacions Neurally F3

FEMALE: Beam Method

Euclidian distance between the SI 10/20 point F3 and the ones located with BeamF3 and BeamF3 Adjusted methods (sample of 250 realistic heads):
Dist BeamF3 (mm) Dist BeamF3 Aj. (mm)
Mean ± SD 5.59 ± 1.23 8.16 ± 1.96
Minimum 3.33 5.20
Maximum 8.16 12.00

FEMALE: Neurally Method

Euclidian distance between the SI 10/20 point F3 and the one located with Neurally F3 method (sample of 250 realistic heads):
Dist NeurallyF3 (mm)
Mean ± SD 0.19 ± 0.11
Minimum 0.01
Maximum 0.59

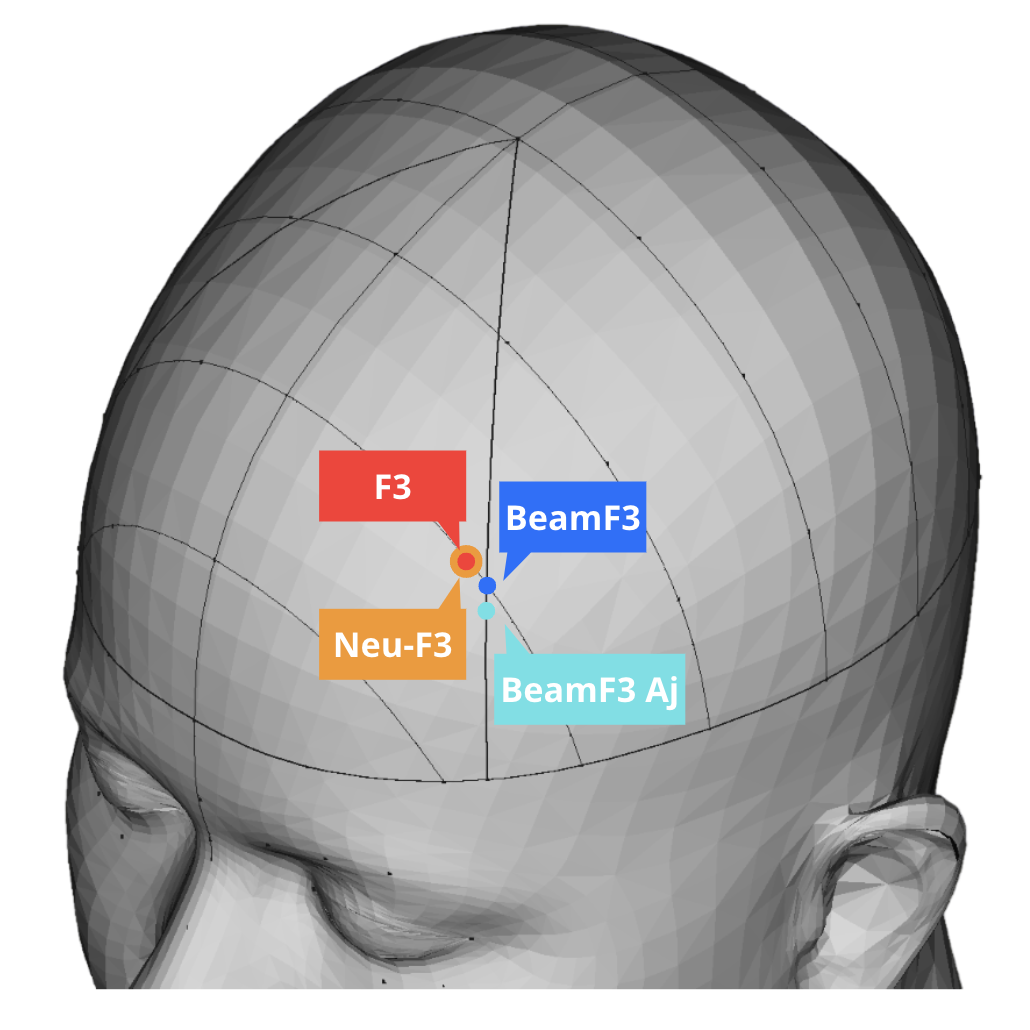

Imatge Punt F3

MALE: Beam Method

Euclidian distance between the SI 10/20 point F3 and the ones located with BeamF3 and BeamF3 Adjusted methods (sample of 250 realistic heads):
Dist BeamF3 (mm) Dist BeamF3 Aj. (mm)
Mean ± SD 6.09 ± 1.52 9.02 ± 2.15
Minimum 3.51 5.04
Maximum 9.43 13.21

MALE: Neurally Method

Euclidian distance between the SI 10/20 point F3 and the one located with Neurally F3 method (sample of 250 realistic heads):
Dist Neurally F3 (mm)
Mean ± SD 0.23 ± 0.14
Minimum 0.03
Maximum 0.64
